Viklight Ymer 30" LED ramp – 154W Auxiliary light, 640 m, E-marked, position light

Viklight Ymer 30” is designed for those looking for maximum brightness in a low and stylish shape. It is e-marked as an additional light according to ECE R112 and has a reference number of 50. The beam provides 1 lux over a full 640 meters and has a well-balanced driving beam light pattern that combines width and length – perfect for both highways and long distances in the dark.

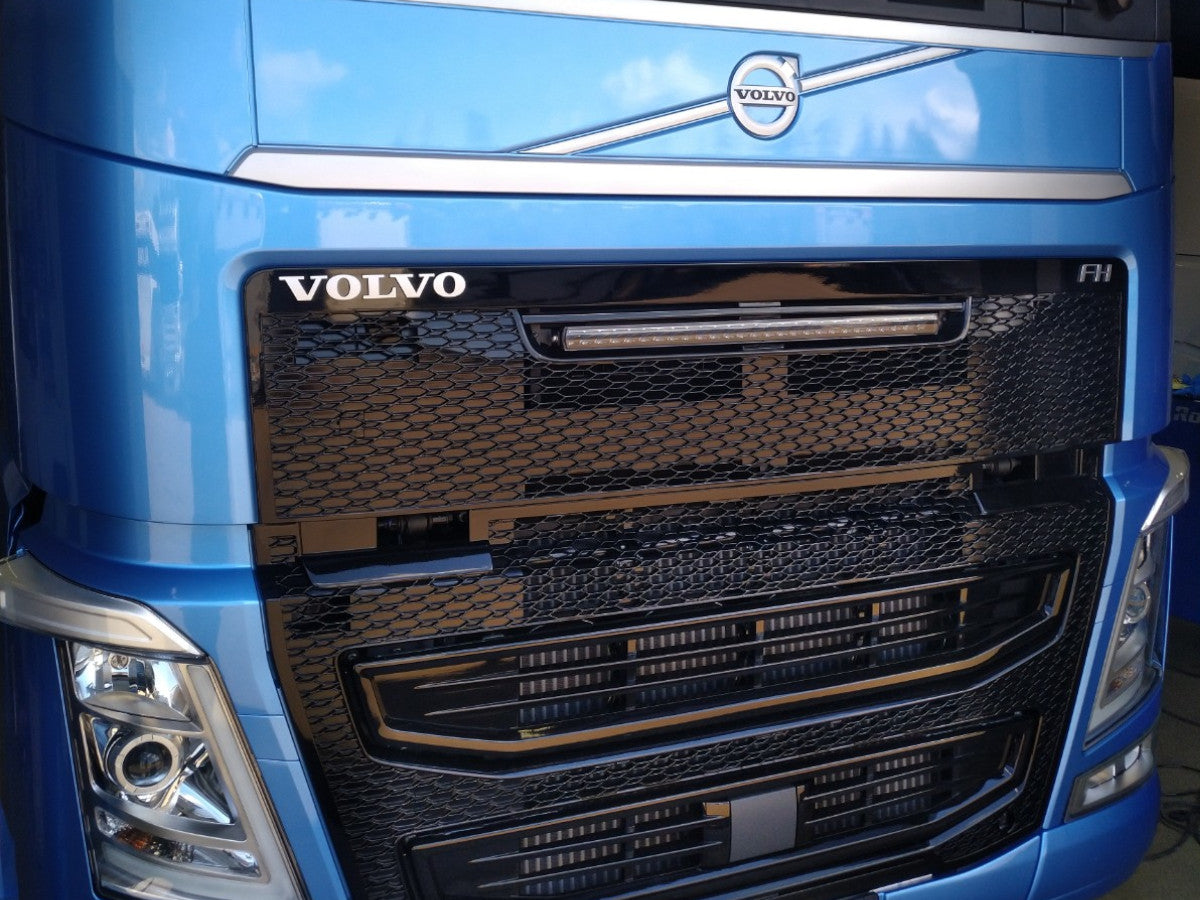

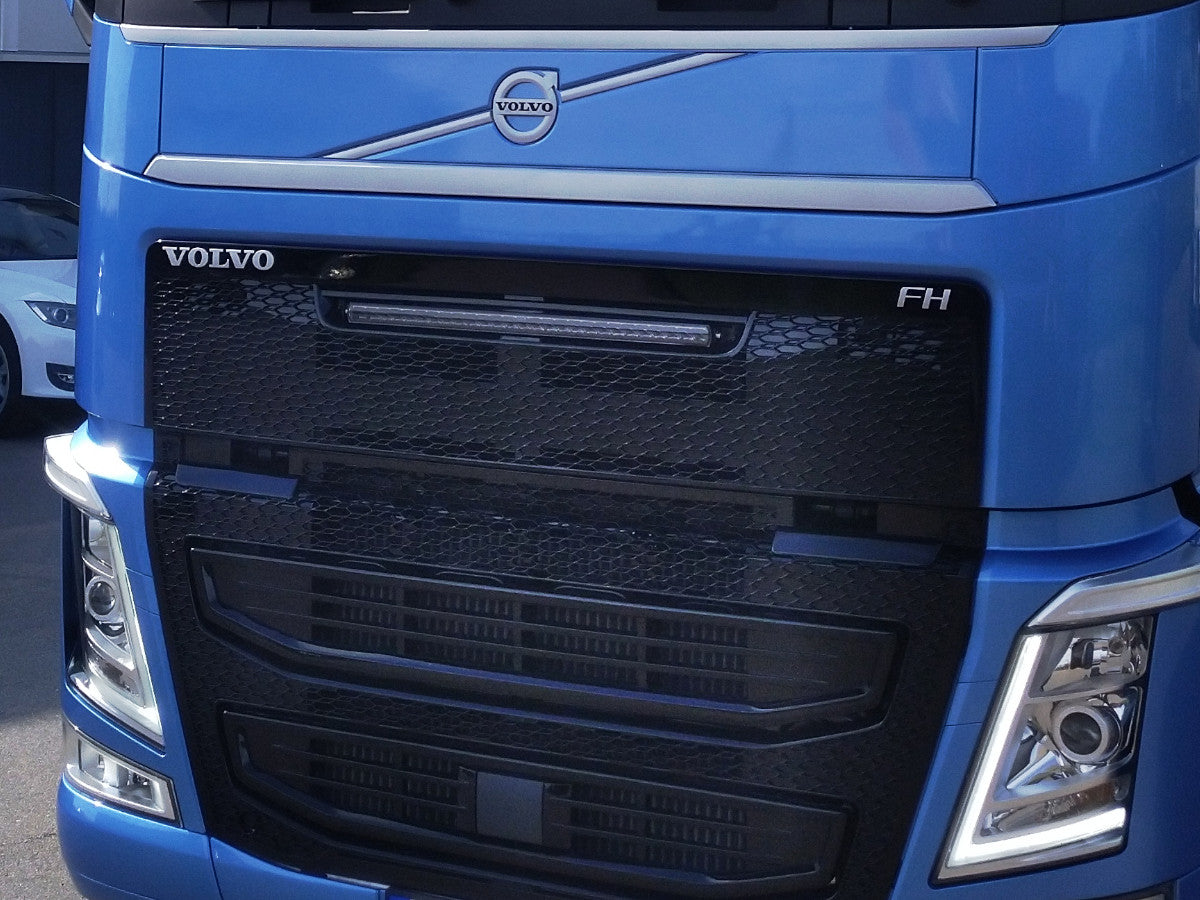

The ramp has an integrated position light that can be switched between orange and white depending on the connection – a popular feature for both aesthetics and extra visibility. With a height of only 38 mm (55 mm including bracket), the ramp can be discreetly mounted under or above the license plate, or in the grill. The robust construction means it can withstand all types of weather, stone chips and vibrations.

Ymer 30” is IP68 rated, has a breathable Gore-Tex membrane and is built in aluminum with a stone-resistant polycarbonate lens. With 27 high-intensity LG LEDs totaling 154 watts, you get both performance and durability. The ramp comes with two different mounting systems: a stepless rail for precise adjustment and L-shaped feet for side mounting – both included in the package.

Electrical connection is via DTP connector (a coarser version than DT) and the ramp is compatible with Viklight's relay wiring. For secure mounting, the license plate bracket B113 and anti-theft screws are recommended, both available as options.

Power: 154W

LED type: 27 pcs LG LED

Luminous flux: 17,100 lumens theoretical (4800 in ECE mode)

Range: 640 m at 1 lux

Light image: Driving beam

E-mark: Yes, ECE R112 (reference number 50)

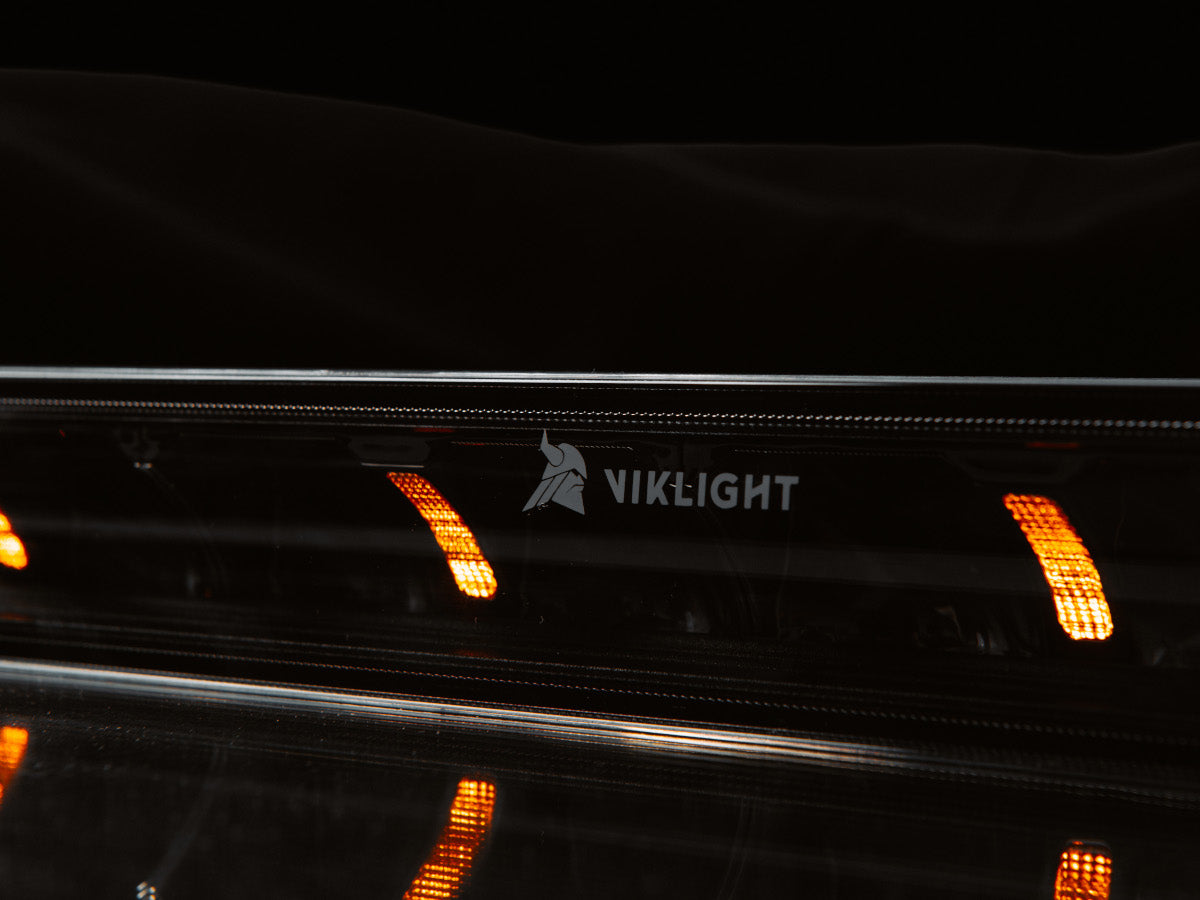

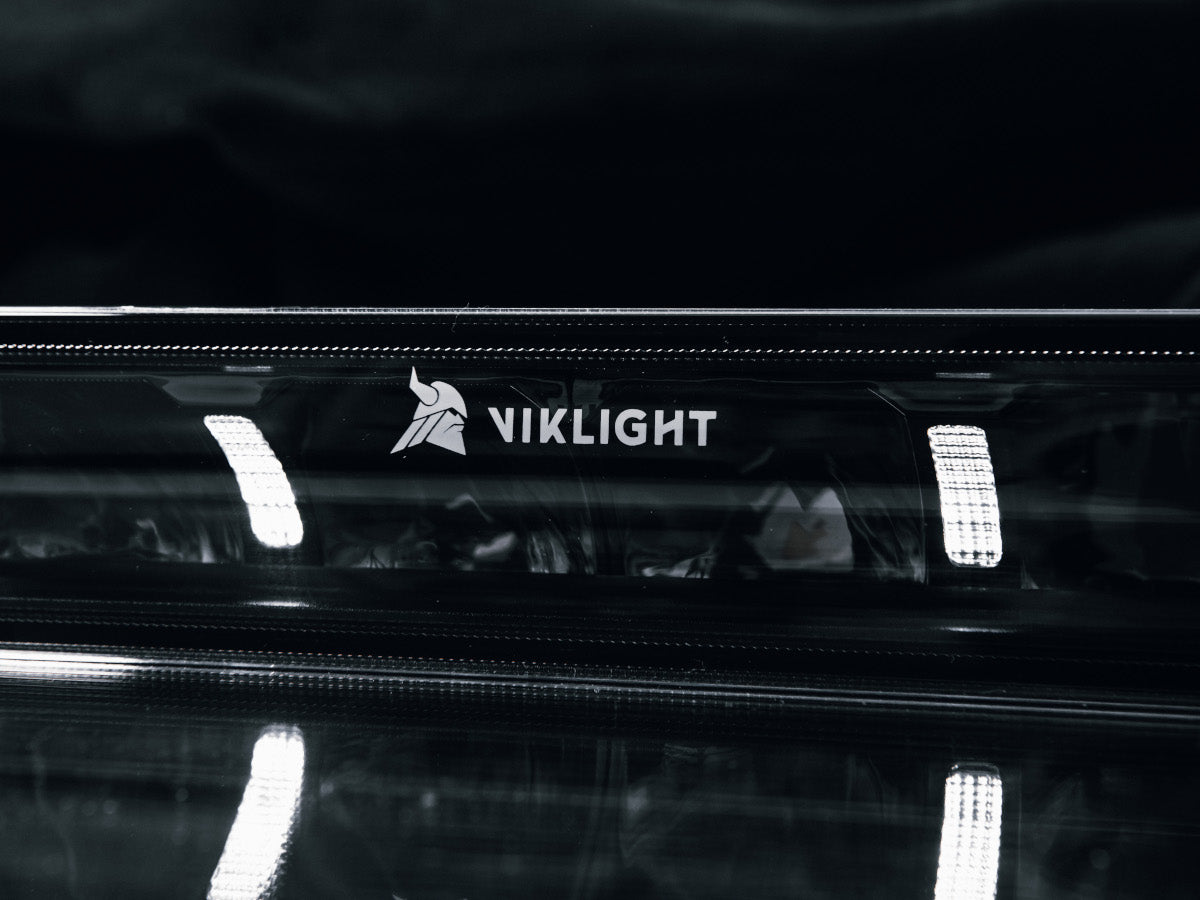

Position light: White (white cable) / Orange (yellow cable)

Voltage: 9–30V DC

Current consumption: 12.8 A at 12V

Power consumption position light: 1.44W (12V), 1.68W (24V)

IP class: IP68

Operating temperature: -40°C to +60°C

Lens: Domed polycarbonate

Housing material: Aluminum

Dimensions (LxHxD): 758 x 38 x 69 mm (height incl. bracket: 55 mm)

Brackets: Stepless rail + side feet with 360° adjustment

Mounting: Standing or hanging

Connector: DTP (loose connector included)

WLTP weight: 1.8 kg

WLTP front area: 0.0309 m²

Warranty: 3 years
