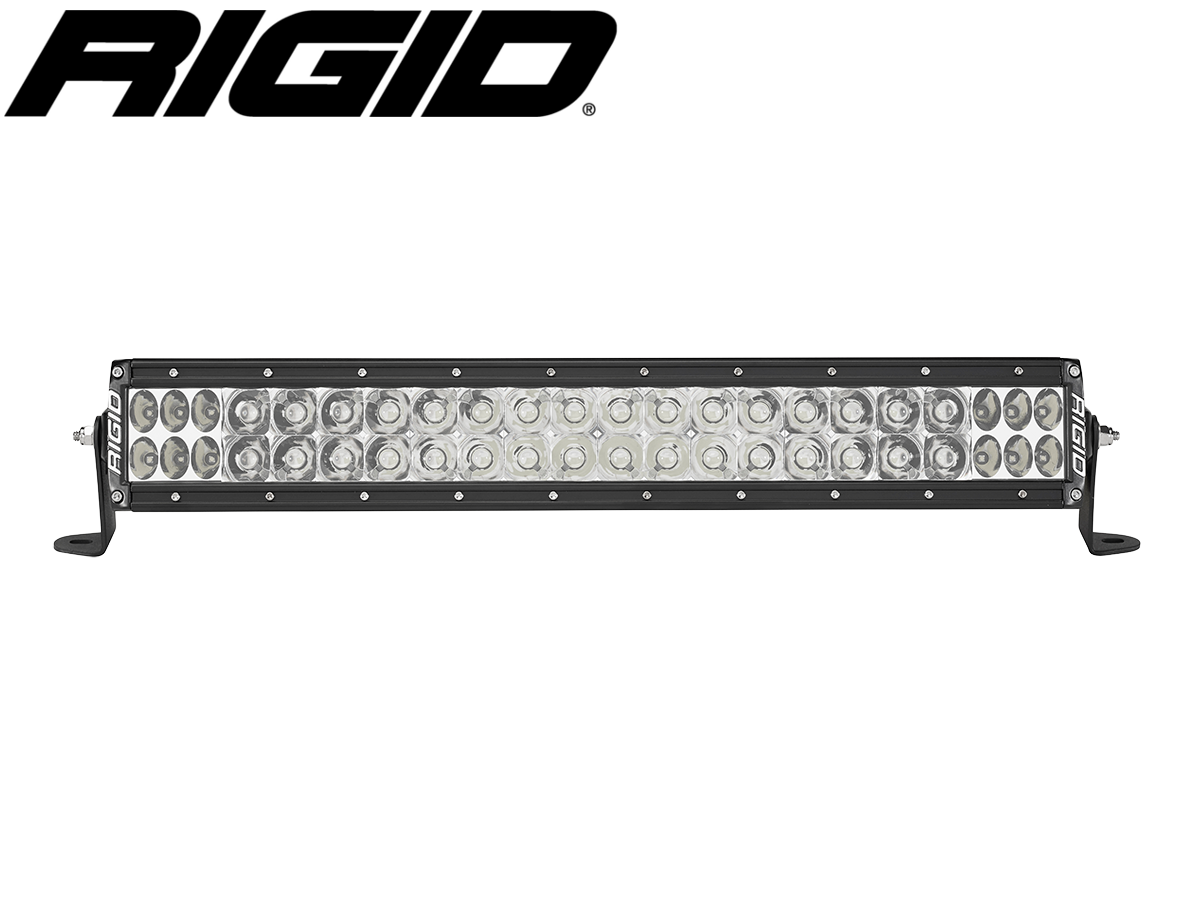

Rigid E-Series Pro 20" LED Auxiliary Light Bar – Compact with 740 m range

More light – streamlined design

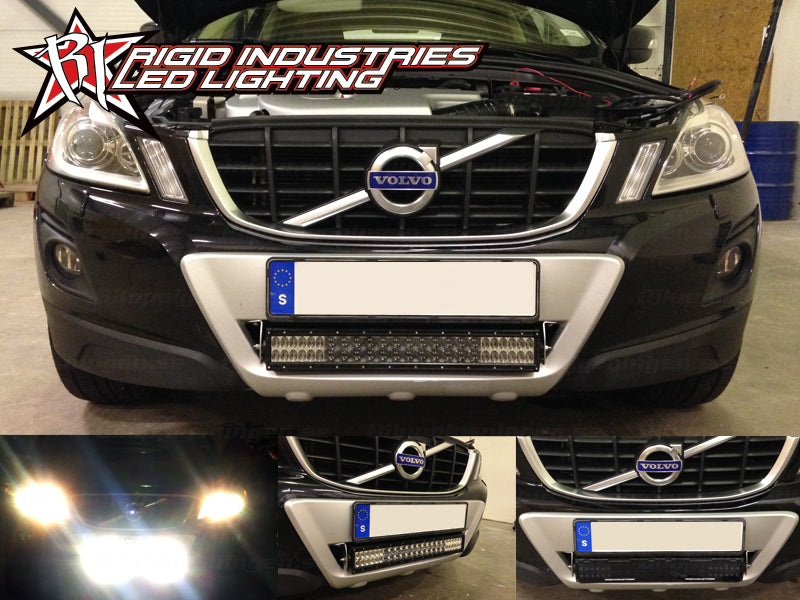

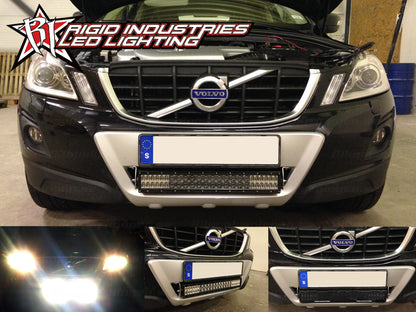

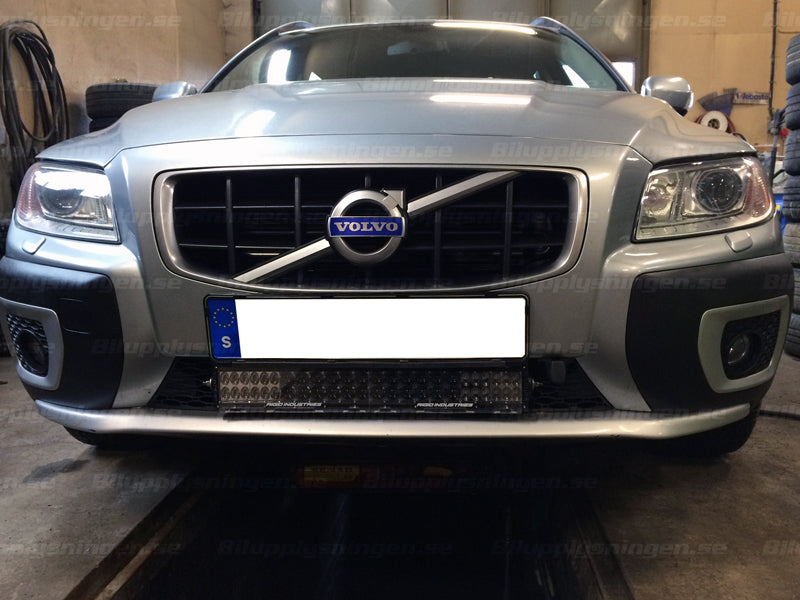

This light is small enough to fit neatly behind or above your license plate, but powerful enough to provide light that reaches far down the road. The combination of spot optics in the center and flood optics on the sides gives you a light field that both goes far and illuminates the roadside. Perfect for commuting, longer distances or driving in the dark on country roads and forest roads.

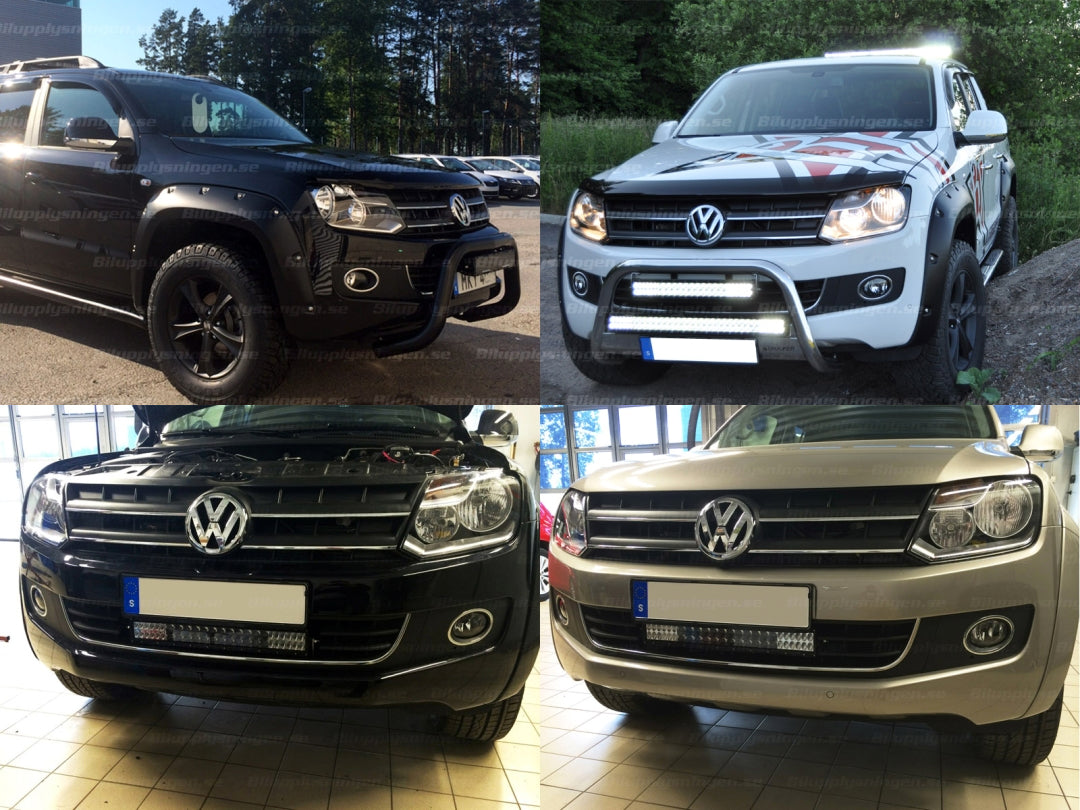

Equally suitable for passenger cars, light trucks and pickups, and is easily mounted with, for example, the universal bracket B120 or in additional light arches from, for example, Qpax.

Withstands tough conditions
Built in the USA to withstand tough use, the Rigid E-Series Pro features a rugged aluminum housing, impact-resistant polycarbonate lens, and is IP68-rated, meaning it's dust and water resistant. It's also vibration-proof and tested to withstand shocks and harsh environments.

Easy assembly – everything you need is included
The side brackets of the ramp can be rotated 360° so you can easily direct the light as you want. You get a complete cable set with relay, fuse and switch. The connection is made via two loose cable ends (plus/minus), ready to be connected with clamp contacts or soldered. The ramp works for both 12V and 24V systems.

Power: 319W

Luminous flux: 34,848 lumens (theoretical)

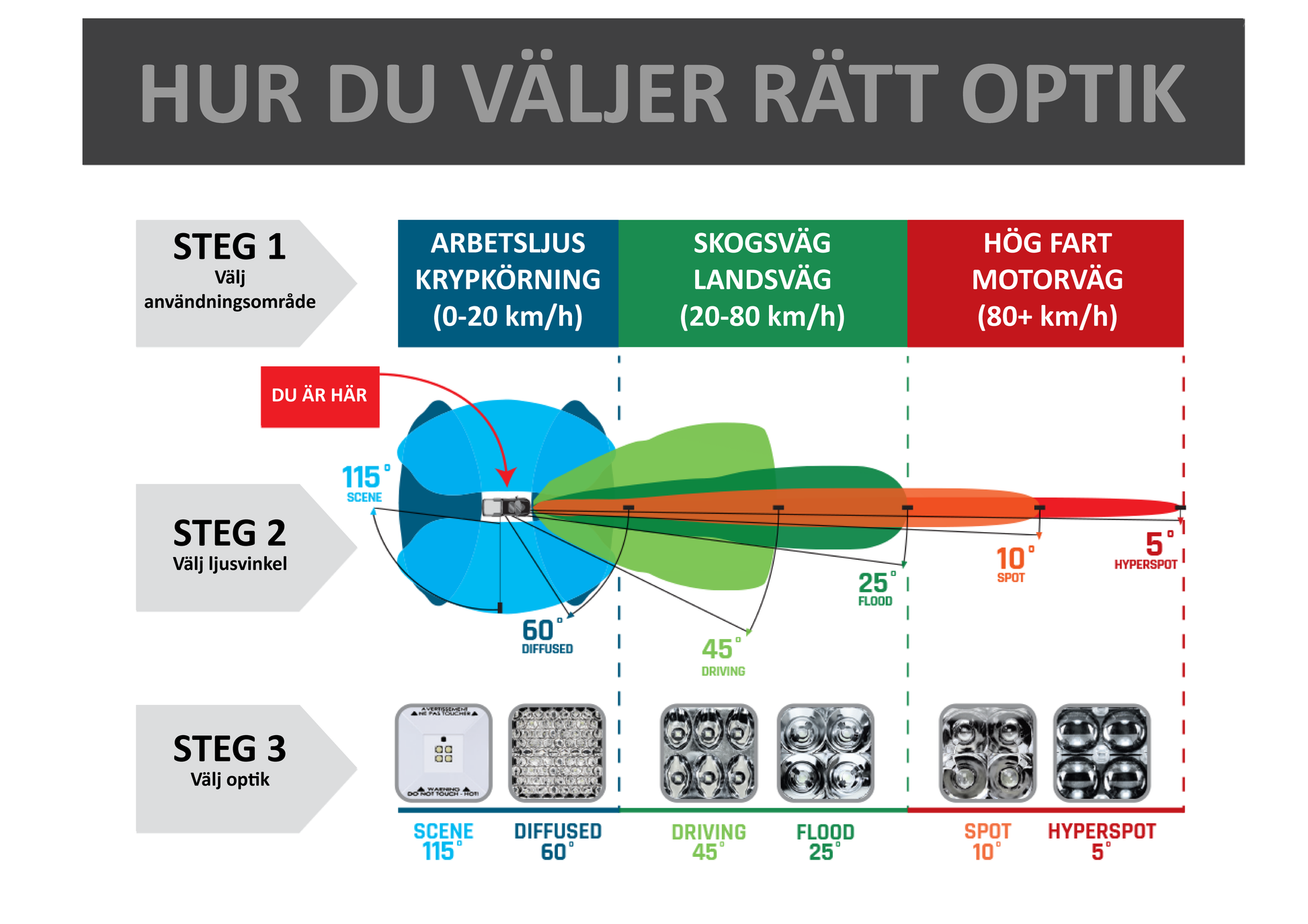

Light pattern: Drive/Spot Combo

Range: 740 m @ 1 lux

Number of LEDs: 44

Voltage: 12–24 V

Current consumption: 22.8 A

IP class: IP68

Length: 543mm

Height (without bracket): 83 mm

Depth: 95mm

Materials: Aluminum housing, polycarbonate lens

Mount: Side mounts, rotatable 360°

E-marked: No

Article number: Replaces 12231

Warranty: 5 years

Sold: Individually
