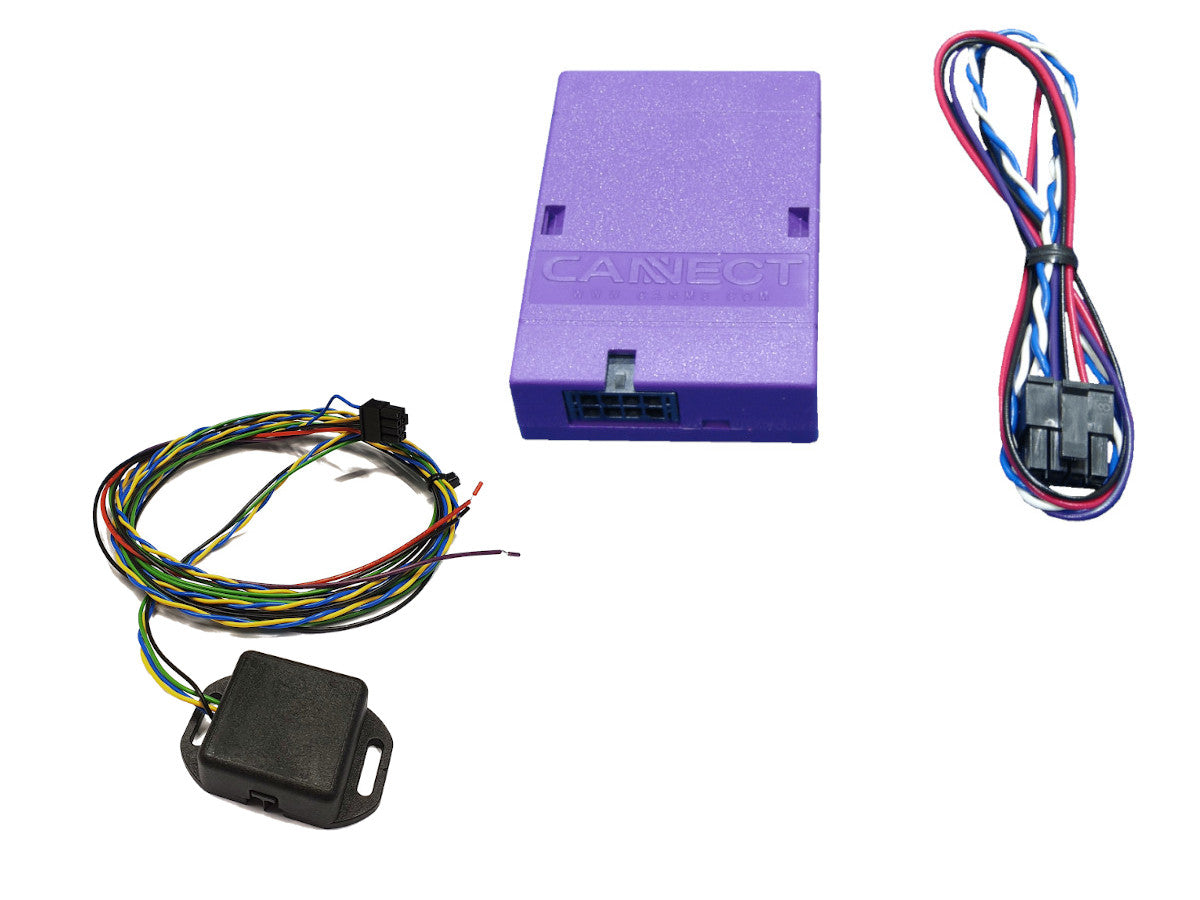

Canbus Interface High Beam with Inductive Reader Cable

Many modern vehicles lack a traditional 12V high beam plus signal, making it challenging to install auxiliary lights without specialist knowledge. The CanM8 CANBUS interface is a revolutionary solution that listens to the car's internal data communication (CAN bus) and generates a stable, analogue plus signal when the high beam is activated.

Thanks to the included inductive reader cable, you don't need to cut, strip or solder any cables in the vehicle's original system - preventing future troubleshooting and preserving the warranty.

When the interface detects that the high beam is on, a +12V signal is sent that can be used to any auxiliary light relay, such as our SEEB093-2A or SEEB093-3A wiring harness. This gives you full control over the auxiliary lights, even in cars where this would otherwise be technically impossible.

The unit also has status LEDs that show when the correct signal is being received, making installation easier to verify. It is also radio interference (EMC)-suppressed and built to withstand the vehicle environment.

Want to know where to connect the device to your car? We have a complete connection guide available - contact us for help.

Product type: CANBUS interface for high beam signal

Signal output: +12V positive signal when high beam is activated

Installation: Connection in the passenger compartment (e.g. at the steering column, OBD socket, stereo, etc.)

Cable colors:

Red: +12V constant

Black: Earth

White: CAN High

Blue: CAN Low

Purple: High beam signal (connect relay wiring here)

Status indicator: LED shows communication status

Compatibility: Large number of vehicles (see example above)

Assembly: Recommended by a professional

Note: Power must be disconnected when changing the connection point

Support: support@canm8.se (please specify car make, model year and picture of connection)
